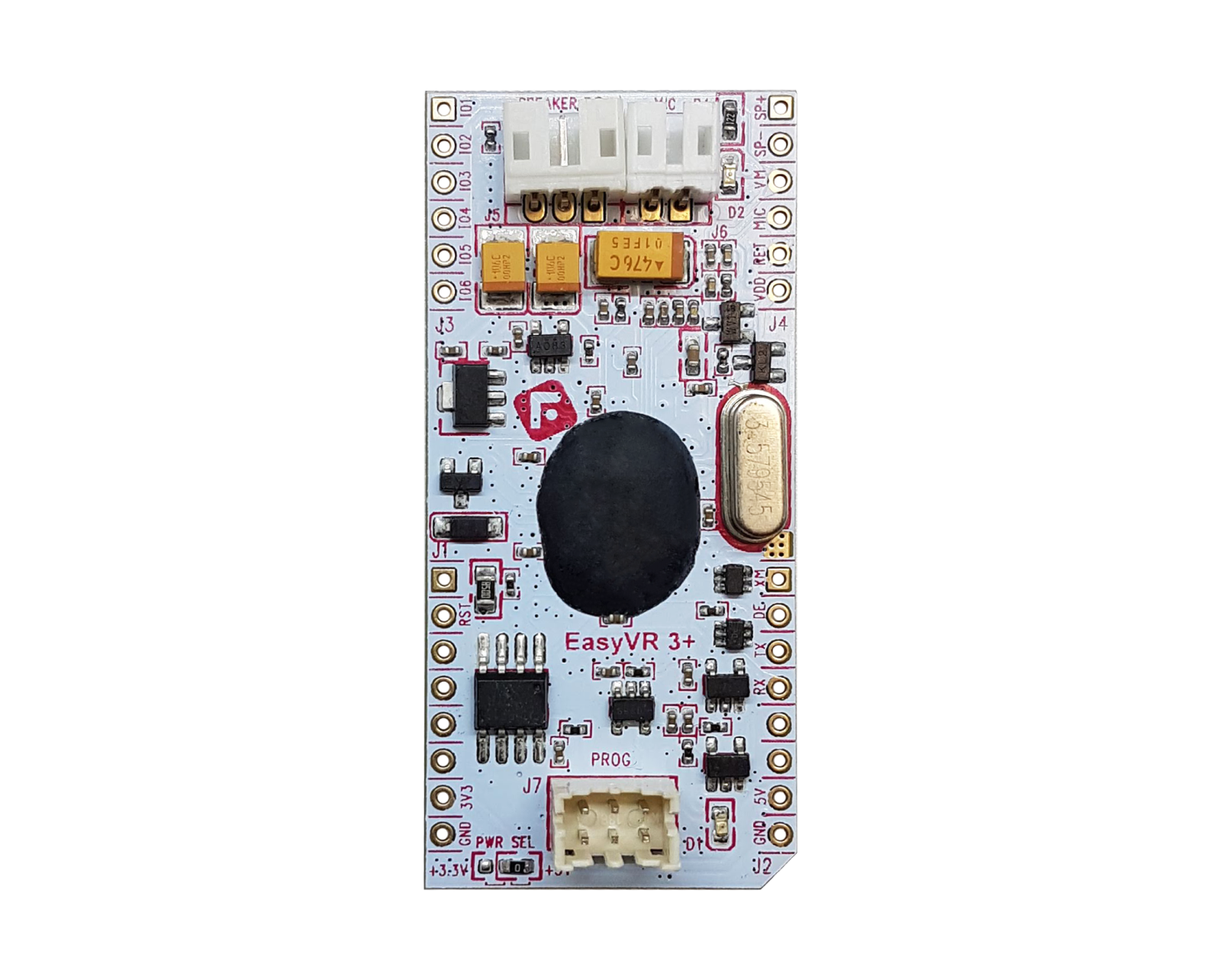

EasyVR 3 Plus

The EasyVR 3 Plus is a multi-purpose speech recognition module designed to easily add versatile, robust and cost effective speech recognition capabilities to any application.

The EasyVR 3 Plus module can be used with any host with a UART interface powered at 3.3V – 5V, such as PIC and Arduino boards. Some application examples include home automation, such as voice-controlled light switches, locks, curtains or kitchen appliances, or adding “hearing” to the most popular robots on the market.

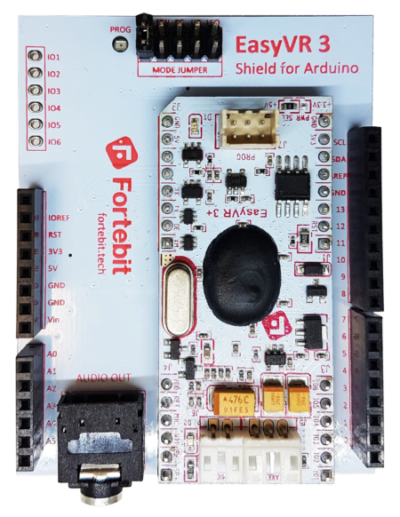

EasyVR 3 Plus Shield for Arduino

The EasyVR 3 Plus Shield for Arduino is compatible with any Arduino board. It includes the EasyVR 3 Plus module AND the Arduino Shield adapter.

The Shield is compatible with any Arduino board using UNO-R3 Shield headers, running at either 3.3V or 5V levels, by using the IOREF pin to select the EasyVR operating voltage.

EasyVR 3 Plus Development Kit

The EasyVR 3 Plus DK kit includes everything you need to start developing with the EasyVR: the EasyVR 3 Plus speech recognition module, the QuickT2SI™ Lite software license, the EasyVR Shield for Arduino, and the QuickUSB cable to program the module.

The EasyVR Shield 3 is an adapter board for the EasyVR 3 Plus module, designed to simplify its use among the Arduino community.

The Shield is compatible with any Arduino board using UNO-R3 Shield headers, running at either 3.3V or 5V levels, by using the IOREF pin to select the EasyVR operating voltage.

It is also backward compatible with earlier Arduino boards that don’t have the IOREF pin, which are using 5V I/O levels by default.

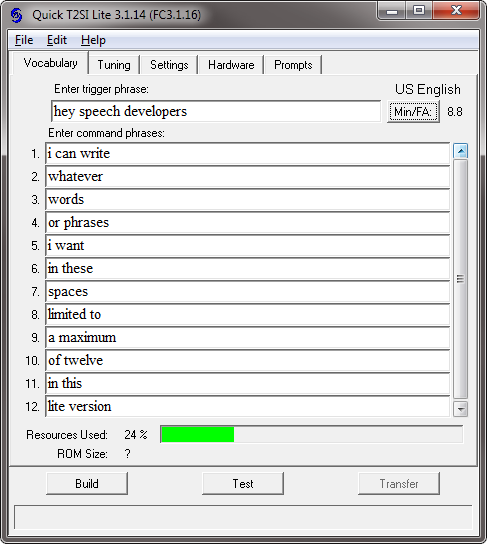

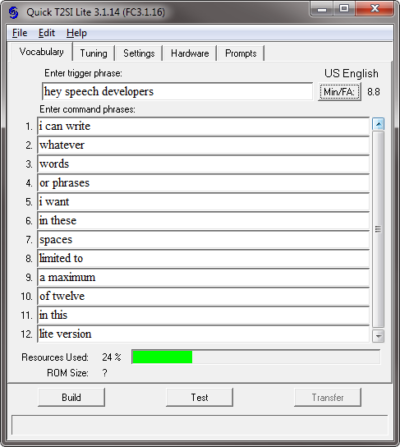

QT2SI Lite Software

The Quick T2SI Lite software allows the development of Speaker Independent vocabularies in a very easy Text-to-Speech fashion. This enables very quick and efficient development of Speaker Independent voice recognition applications.

The Quick T2SI™ supports the following languages:

1. US English
2. French
3. German
4. Italian
5. Japanese
6. Mandarin
7. Spanish

The maximum number of available commands per set is 12.
